Be careful! This can be a BRACKETLESS (NO BASE) pump and ONLY replaces OEM Models#: 6500-343; 6500-347; 6500-355; 6500-359; 6500-092; 6500-094; 6500-095; 6500-096;

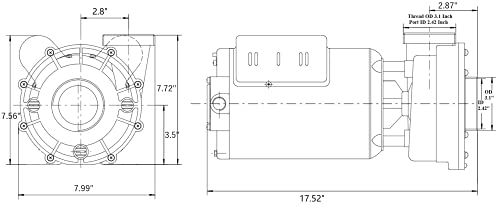

Center Intake & Side Discharge: The pump discharge is at 12:00 position and it can be rotated each 90-degrees (3:00 or 9:000 position). Two sets of 2 inches unions are included.
Please take note of Amp draw, Voltage and the size of intake & discharge before ordering the pump.
It is a two Speed Pump, however it also will also be wired to be used as a single speed pump.
Maximum Operation Pressure: 0.3Mpa; Maximum Glide Rate: As much as 190 GPM
Be certain that this fits by entering your model number.
2 HP,Two Speed BRACKETLESS (NO BASE) pump- ONLY replaces OEM Model # 6500-343; 6500-347; 6500-355; 6500-359; 6500-092; 6500-094; 6500-095; 6500-096;
48 Frame Motor(No Base) ,10A (High Speed), 3A (Low Speed); 230V/60Hz input; UL, CUL, ETL Certified
Thermal Protector from Texas Instruments; Copper winding Motor for cooler operation;
Durable capacitor &Viton Seal- Resistant to High/Low temperature;
Anti-Creep Bearing
