Replacement OEM Model #753746-402; WCA100.
Cable Connection: Blue & White cable will have to be connected to Null wire; Black cable will have to be connected to Live wire; Ground Cable will have to be grounded within the controller box.

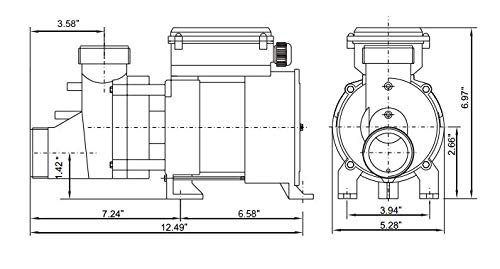

Center Intake & Discharge: The pump discharge is at 12:00 position and the intake is in center.
Two sets of 1.5 inches unions are included. However the unions from different factories may well be a bit of different, so please use our unions for better seal.
This pump can replace the ones from those popular pump suppliers and please verify Amp draw, Voltage and the size of intake & discharge.
Maximum Operation Pressure: 0.3Mpa; Maximum Float rate as much as 92.6 GPM.
Make sure that this fits by entering your model number.
Whirlpool Bath Tub Jet Pump with Internal Air Switch, 7A/110-120V/60Hz, UL, CUL, ETL Certified;
Superb quality copper winding Motor for cooler operation; Thermal Protector from Texas Instruments; Two sets of 1.5″ union included;
Superb quality capacitor compliant with our strict tests: Water-Proof Test, High Pressure & Hot Water Test, 80,000 Charge and Discharge Cycle Test, and 500V AC Impulse Test
Good Quality Seal: Resistant to High/Low temperature; Corrosion Resistant; High Hardness for Durable & Reliable performance.
Anti-Creep Bearing with high temperature grease oil to verify quiet operation.
