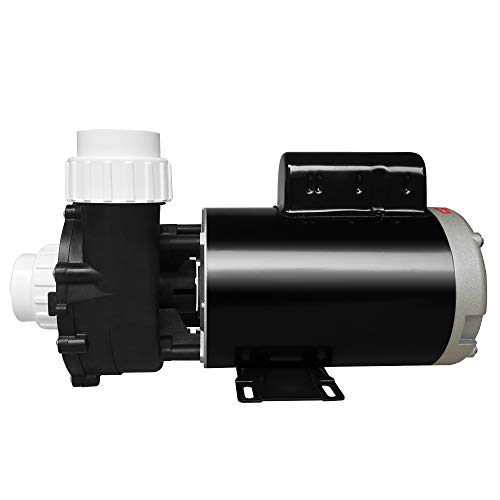

KL KEY LANDER Hot Tub Spa Pump, 3HP, Two Speed, 56Frame, LX Motor, (220-240V/60Hz); 2″ Port; OEM#1019801-03 and 56WUA300-II

Amazon.com Price: $295.99 (as of 27/09/2022 00:57 PST- Details)

Make sure this fits by entering your model number.
3HP, 2 Speed Pump, 56 Frame, 10A (High Speed), 3.5A (Low Speed); 220-240V/60Hz input; UL, ETL Certified
Excellent quality copper winding Motor for cooler operation; Thermal Protector from Texas Instruments; Two sets of 2″ union included;

Replacement OEM Model# 1019801-03 & 56WUA300-II. Please take note of Amp draw, Voltage and the size of intake & discharge.
Center Intake & Side Discharge: The pump discharge is at 12:00 position and it may also be rotated each 90-degrees (3:00 or 9:000 position).
Two sets of 2 inches unions are included. However the unions from different factories could be a bit different, so please use our unions for better seal.
This pump can replace the ones from those popular pump suppliers and please verify Amp draw, Voltage and the size of intake & discharge.
Maximum Operation Pressure: 0.3Mpa; Maximum Float rate as much as 188 GPM

Ensure that this fits by entering your model number.
3HP, 2 Speed Pump, 56 Frame, 10A (High Speed), 3.5A (Low Speed); 220-240V/60Hz input; UL, ETL Certified
Excellent quality copper winding Motor for cooler operation; Thermal Protector from Texas Instruments; Two sets of 2″ union included;
Excellent quality capacitor compliant with our strict tests: Water-Proof Test, High Pressure & Hot Water Test, 80,000 Charge and Discharge Cycle Test, and 500V AC Impulse Test
Viton/ Silicon Carbide/ Graphite Seal: Resistant to High/Low temperature; Corrosion Resistant; High Hardness for Durable & Reliable performance
Anti-Creep Bearing with high temperature grease oil to verify quiet operation.
