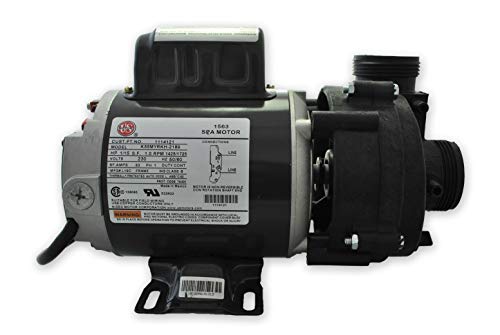

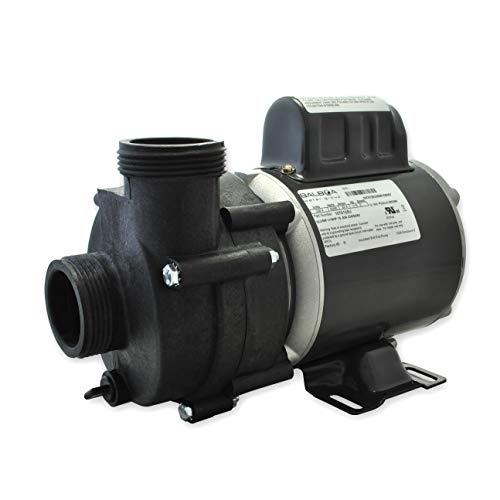

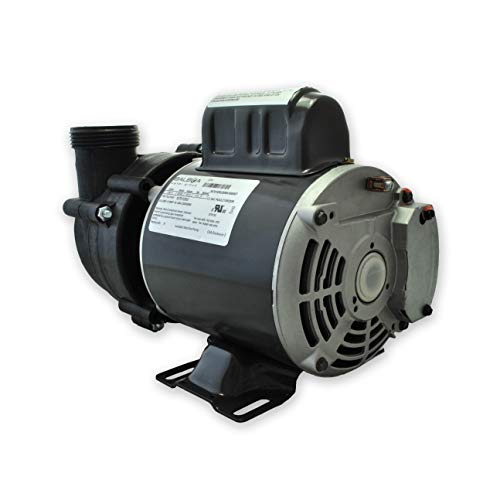

Northern Lights Group 1/15 HP Balboa Circulation Pump – Wow circ hot tub Pump – 230 VAC PN: 6154106-S

Amazon.com Price: $312.64 (as of 09/04/2023 23:58 PST- Details)

Make sure this fits by entering your model number.
1/15 HP Balboa Circulation Pump – WOW circ hot tub pump – 230 VAC
Amps= .63

Balboa Spa Circulation Pump- 1/15 HP 230V

PN 1070125U

Balboa UltraJet 1/15 HP circulating 230VAC Hot Tub

Pump, Ultra Quiet!

Comes with 1.5″ pump unions

This ultra quiet hot tub pump circulation pumpis one of the energy efficient pumps available on the market. Balboa’s Circulation pumps combines the most productive of two technologiesthe proven reliability of the Ultima pump wet end and the dynamic WOW motor that revolutionized the bath market. The high glide circ pump provides up to 67 gallons per minute glide at the same time as operating at the same time as drawing only .63 amp. These pumps are perfect for whirlpool applications where quiet efficient running circulation is needed. This pump is designed as a circulation pump and used in spas that have a circulation system. It is 1/15 HP single speed and runs off 230 VAC. The low speed circulating pump is used in a 2 pump configurations and moves water quietly and steadily through the heating and filter system.

Safety features include auto shut off protection in case of plugged suctions and high heat limit overload protection.

Comes complete with two x 1 1/2″ replacement unions that may be easily be expanded to fit larger 2″ standard PVC plumbing. Included is a hygienic drain plug that ensures no water is left in the pump body throughout storage, also preventing freeze damage where applicable. Also included with every UltraJet pump head is their unique venturi by pass ports. By drilling out the inside of these ports water may also be by passed and used with accessories such as pump heat jackets or ozone systems.

Specifications:

  • amps = .63amps
  • rpm = 1725 rpm
  • 230 VAC 60 Hz, 1 speed
  • frame = 48 short
  • length = 10.5″
  • height = 7.5″
  • port opening = 1 1/2″
  • warranty = 2 years

Make sure this fits by entering your model number.
1/15 HP Balboa Circulation Pump – WOW circ hot tub pump – 230 VAC
Amps= .63
Ultra Quiet
rpm = 1725 rpm
2 Year Warranty
