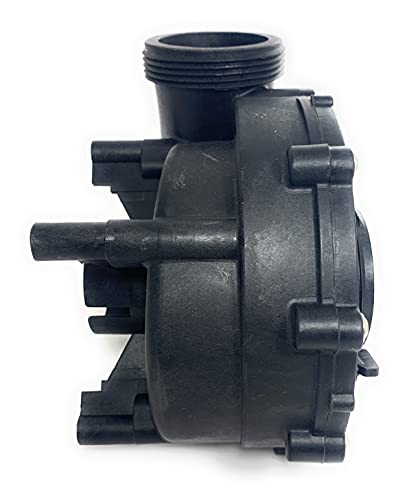

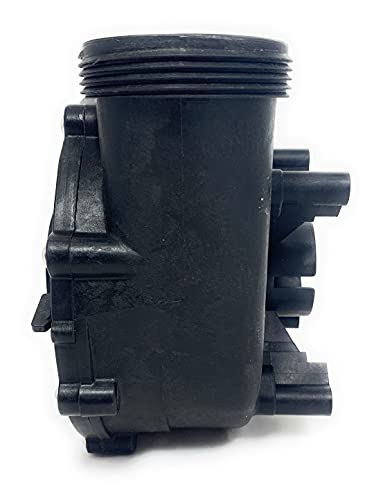

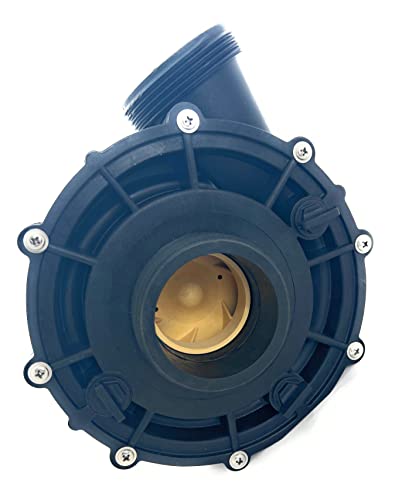

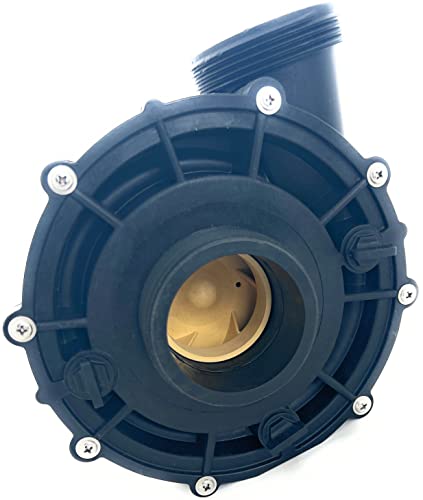

This is a 4 Horse Power 56 Frame Pump Wet End fits Guangdong LX Brand Pump Motors only. These pumps frequently have the part number WUA-400, WP-400 or LP-400 on the label. Watch the video for instruction on how to install this part and also how to decide if this is the right kind part. It is about 7 1/4″” across the face of the pump, it measures about 7 3/8″ from the bottom to the top of the pressure side of the volute, it also measures 413/16″ from the back to front edge. The Suction and Pressure side thread fittings are referred to as 2″ x 2″ but measure 3″ from the edge of the thread to the edge of the thread. NOTE: This Wet End looks a lot like an Aqua-Flo and a CMP Wet End but they don’t interchange! Note: This Wet End Fits Guangdong Chinese LX and LP series Pumps only Some Pump Part numbers are as follows: (WUA400-II, WUA400-I) (LP400) (WP400-II/,400-I) To Install this wet end you’ll have to loosen the thru bolts and unscrew the impeller. There are time where you’ll have to disassemble the motor with a view to loosen the impeller because they get stuck when they leak. If in case you have a seal leaking typically you are going to need an impellor because the leak caused water to get into the metal shaft area that the impeller is screwed onto and expands and damages.
Make sure this fits by entering your model number.
LX Series Jet Pump 4HP Wet End
Fits WUA LP and Guangdong LX Pump
2″ x 2″ Inlet and Outlet that measures 3″ across the threads..
56fr is 5 7/8″ center to center on the X bolt pattern
