This 3 Horse Power 56 Frame Pump Wet End fits Guangdong LX Brand Pump Motors only. These pumps frequently have the part number WUA-300, WP-300 or LP-300 on the label. Watch the video for instruction on how to install this part and also how to decide if this is the right kind part. It is about 7 1/4″” across the face of the pump, it measures about 7 3/8″ from the bottom to the top of the pressure side of the volute, it also measures 4 13/16″ from the back to front edge. The Suction and Pressure side thread fittings are known as 2″ x 2″ but measure 3″ from the edge of the thread to the edge of the thread. NOTE: This Wet End looks a lot like an Aqua-Flo and a CMP Wet End but they don’t interchange! Note: This Wet End Fits Guangdong Chinese LX and LP series Pumps only Some Pump Part numbers are as follows: (WUA300-II, WUA300-I) (LP300) (WP300-II/,300-I) To Install this wet end you’ll have to loosen the thru bolts and unscrew the impeller. There are time where you’ll have to disassemble the motor in an effort to loosen the impeller because they get stuck when they leak. Note: We offer parts for this wet end and complete pumps in our store. Visit our Store as we also offer these and other associated products and accessories for your Spa. Please note: You probably have a seal leaking usually you are going to need an impellor because the leak caused water to get into the metal shaft area that the impeller is screwed onto and expands and damages See our You Tube Video for more information about this Pump “LX Series Guangdong Pump How To Repair The Spa Guy”
Make sure this fits by entering your model number.
LX Series Jet Pump 3HP Wet End
Fits WUA300 LP300 and Guangdong LX Pump

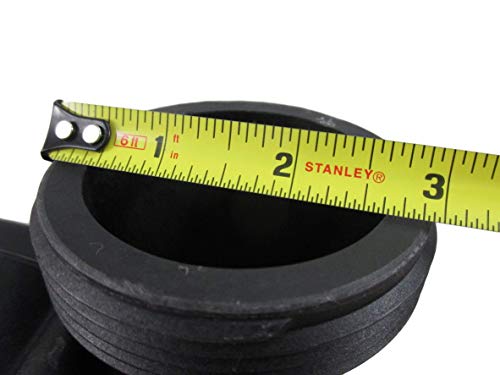

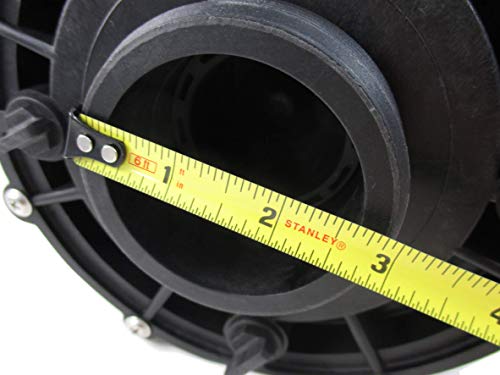

2″ x 2″ Inlet and Outlet that measures 3″ across the threads..
See our You Tube Video about this Pump “LX Series Guangdong Pump How To Repair The Spa Guy”

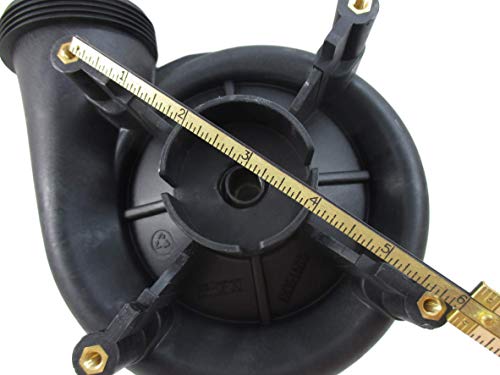

56fr is 5 7/8″ center to center on the X bolt pattern
