SPAGUTS AO Smith Spa Motor with Spa-Flo II Pump, 2.0HP, 220V, 1.5-inch Intake, 342102A-S0Z – 48 Frame

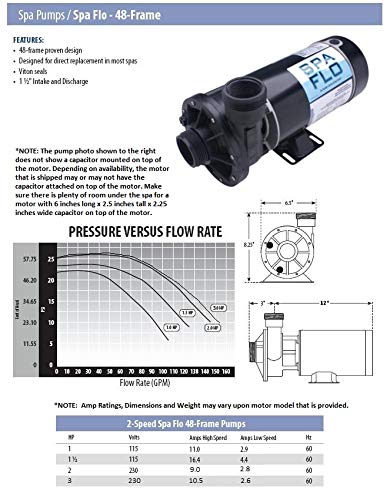

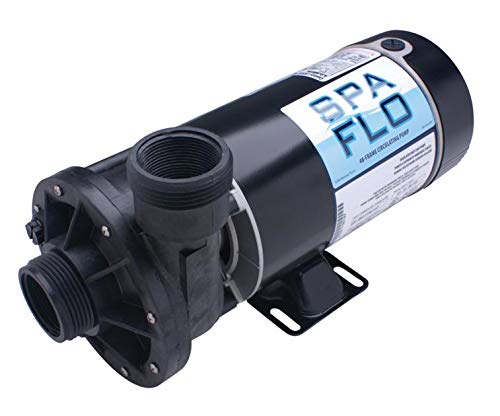

Our New Spa-Flo II Pump consist of a Side Discharge pump wet end with 1.5-inch threaded fittings (approximately 2-3/8 inch if measuring from Out of doors thread to Out of doors thread of fittings) and a 48-frame, 2-speed, AO Smith Electric Spa Motor. The pump photo shown does not show a capacitor mounted on top of the motor. We can’t guarantee if the motor that may be shipped will or won’t have the capacitor attached on top of the motor. Make sure there may be numerous room under the spa for a motor with 6 inches long x 2.5 inches tall x 2.25 inches wide capacitor on top of the motor. The pump image shows the pump discharge on top pointing to the 12 o’clock position. The pump discharge May also be rotated each 90-degrees (3, 6 or 9 o’clock positions) by loosing the four long bolts behind the motor. The pump intake (suction) is situated in the front center face of the pump.

Make sure this fits by entering your model number.
230V, 60Hz, RPM 3450/1725, 9.0/2.8A (Amp Rating Varies)
1.5″ center suction, and 1.5″ side discharge (Out of doors thread measures approximately 2-3/8″)
Dual Speed Pump (Low/High. May also be wired for single speed)
