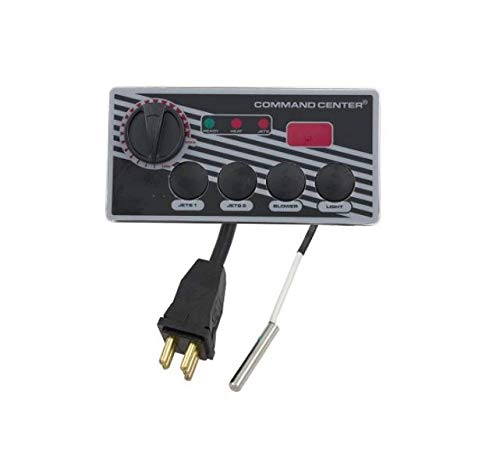

SpaGuts 30-200-2010. If you have a pneumatic (air) spa controller with HEATER but would like the convenience of being able to not only Regulate the temperature from a topside Regulate unit, but to also see an LED display of the water temperature, this standard topside command center is for you. This can be a will have to if you have limited access to your spa equipment or if you would prefer not getting out of the hot tub every time you need to adjust the temperature. This topside WILL NOT work with the Heat Recovery Regulate unit from TecMark. Standard Dimensions (Approx): 6.50 inches L x 3.25 inches W x 4.50 inch D. Needless to say most Command Centers are rated 110 or 120 volts. Verify off the original topside label or take voltage measurement off the 6-pin receptacle for voltage rating. Newer model Topside Command Centers will only have 5-pin plugs as shown in photo, which will work fine on a 6-pin receptacle. The 5-pin plug style is UL approved for safety standards. Thermowell is sold one after the other. NOTE 1: This topside command center only works with pneumatic (air) type controllers that is topside ready with a 6-pin receptacle installed. This topside WILL NOT work with the Heat Recovery Regulate unit from TecMark. NOTE 2: This topside command center has an LED display that also needs constant power to the display always in order for the thermostat to work. If the LED display version is replacing an old topside command center that has no LED display, customer MUST be willing to re-wire the main controller box to provide constant power to the new topside with LED display. NOTE 3: A couple of controllers out there are pre-wired for a topside command center with no display. Customer MUST be willing to re-wire the main controller box to provide constant power to the new topside with LED display. Normally this is decided by having to turn on the blower circuit with the intention to get the LED display to light up.
Make sure this fits by entering your model number.
1x Command Center with Display, Standard, 120V, 6ft Cord, 6ft Sensor, CC4D-120-06-I-00
1x Overlay, 4-Button Label, W/Display, 30191BM
1x Dial Knob, 30175BM
1x Mounting Template, AM30198; 4x Mounting Screws, 3/4-inch
