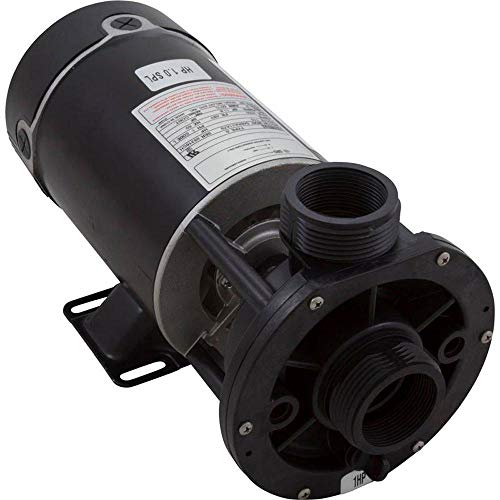

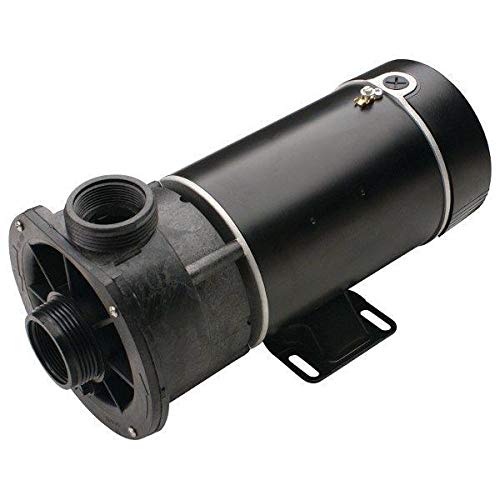

Waterway Plastics 3410410-15 1 hp 115V 1-Speed Spa Pump 1 2″ Center Discharge

Please read: there’s no industry standard for unions. The more than a few brands have their own unique style, which means that you should use the unions provided with our spa pump. This will most likely involve cutting off your Old unions & installing the new ones (400-4060) Shipped with the spa pump. If your heater is directly coupled to the spa wet end, then our pump will probably not work as the union will most likely be different. BE sure to look at the Motor voltage, not the voltage supplied to the spa to resolve the correct pump voltage. When removing power cord from existing pump we recommend you mark your wires for “common”, “high Speed”, “low Speed”. the pump does not come with a power cord. The connection diagram for the new pump is located on the Motor name plate. The wet ends will also be rotated by simply loosening the Motor thru bolts & turning the pump head, allowing the Discharge to pt. To 3 o’clock, 9 o’clock or 6 o’clock. Not self priming-water should be above pump head with the intention to operate properly. 1.5″ refers to the size of your PVC plumbing supply lines. it has nothing to do with the size of the union nuts, the size of the threads on the wet end or the inside diameter of the Inlet/outlet. The PVC pipe slides into the union & is glued with PVC cement. 1.5″ plumbing means you have 1.5″ schedule 40 PVC supply lines (1.5″ I.D.; 1 7/8″ O.D. On the line) circumference = 6.5″ (wrap a tape measure around the pipe). in case you are unsure if this pump will give you the results you want, please call us, we will be able to help assist you in your selection. If you only require a one Speed pump, this pump will work fine. Simply just use the high Speed connection. Optional debris basket 310-5400 available.

Make sure this fits by entering your model number.
1 hp 3450 rpm, 1-speed, 12.0 amps, 115V 60Hz
Wet end will also be rotated for easy installation
Reliable center discharge performance – 1.5″ inlet/outlet

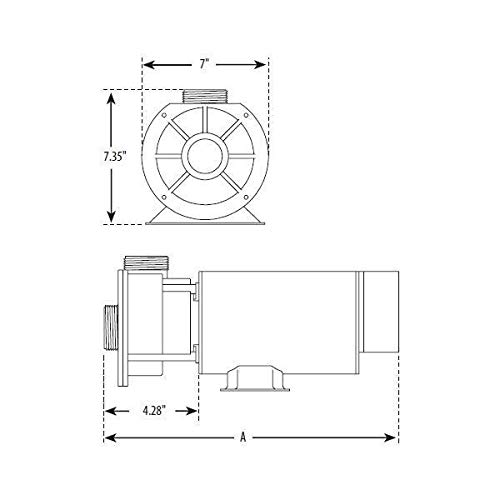

Overall length = 16″ height 7.35″; automatic overload protection
1 year manufacture warranty
